IEC60092 STANDARD Offshore & Marine Cables
MFX400 0.6/1 kV Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed, Armoured Fire Resistant Power & Control Cables (Multicore)
Applications
These armoured fire resistant cables are used on board of ships in all locations for fixed installations where cable protection is required. These cables are fire resistant, flame retardant, low smoke & halogen free.
Standards
- IEC 60092-350/351/353/359
- IEC 60331-21
- IEC 60332-1
- IEC 60332-3-22
- IEC 60754-1/2
- IEC 61034

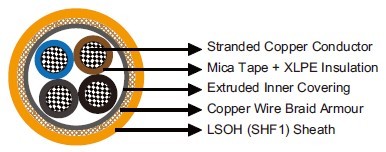

Construction
| Conductors | Class 2 stranded copper conductor. |
| Class 5 stranded conductors can be offered upon request. | |
| Insulation | Mica tape + XLPE. |
| Inner Covering | Extruded inner covering. |
| Armour | Copper wire braid. |
| Outer Sheath | LSOH (SHF1).SHF2 can be offered upon request. |
Core Identification
| Two cores | Blue, Brown. |
| Three cores | Brown, Black, Grey. |
| Four cores | Blue, Brown, Black, Grey. |
| Five cores | Blue, Brown, Black, Grey, Black. |
| Multi cores | White with black numbers. |
Mechanical and Thermal Properties
| Bending Radius for Fixed Installations | 6×OD |
| Temperature Range | -30℃ ~ +80℃ |
Dimensions and Weight
MFX400 1mRMZ1-R Multicore Armoured 0.6/1kV (-R stands for class 2 conductor. For class 5 conductor, please change –R to –F)
| Part No. | Construction No. of cores×Cross section | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight |
| mm² | mm | mm | mm | kg/km | |
| MFX400-1mRMZ1-R-2C1.5 | 2×1.5 | 0.7 | 1.1 | 10.5 | 180 |
| MFX400-1mRMZ1-R-2C2.5 | 2×2.5 | 0.7 | 1.1 | 11.7 | 230 |
| MFX400-1mRMZ1-R-2C4 | 2×4 | 0.9 | 1.2 | 12.9 | 290 |
| MFX400-1mRMZ1-R-2C6 | 2×6 | 0.9 | 1.2 | 14.8 | 400 |
| MFX400-1mRMZ1-R-2C10 | 2×10 | 0.9 | 1.3 | 16.6 | 570 |
| MFX400-1mRMZ1-R-2C16 | 2×16 | 0.9 | 1.4 | 19.0 | 770 |
| MFX400-1mRMZ1-R-2C25 | 2×25 | 0.9 | 1.5 | 22.8 | 1130 |
| MFX400-1mRMZ1-R-2C35 | 2×35 | 0.9 | 1.5 | 25.0 | 1420 |
| MFX400-1mRMZ1-R-2C50 | 2×50 | 1.0 | 1.5 | 28.0 | 1860 |
| MFX400-1mRMZ1-R-3C1.5 | 3×1.5 | 0.7 | 1.1 | 11.2 | 210 |
| MFX400-1mRMZ1-R-3C2.5 | 3×2.5 | 0.7 | 1.1 | 12.2 | 260 |
| MFX400-1mRMZ1-R-3C4 | 3×4 | 0.9 | 1.2 | 13.5 | 340 |
| MFX400-1mRMZ1-R-3C6 | 3×6 | 0.9 | 1.3 | 15.7 | 480 |
| MFX400-1mRMZ1-R-3C10 | 3×10 | 0.9 | 1.3 | 17.7 | 680 |
| MFX400-1mRMZ1-R-3C16 | 3×16 | 0.9 | 1.4 | 20.0 | 930 |
| MFX400-1mRMZ1-R-3C25 | 3×25 | 0.9 | 1.6 | 24.1 | 1380 |
| MFX400-1mRMZ1-R-3C35 | 3×35 | 0.9 | 1.6 | 26.4 | 1770 |
| MFX400-1mRMZ1-R-3C50 | 3×50 | 1.0 | 1.6 | 29.6 | 2350 |
| MFX400-1mRMZ1-R-3C70S | 3×70 (sector shaped) | 1.1 | 2.0 | 31.9 | 2930 |
| MFX400-1mRMZ1-R-3C95S | 3×95 (sector shaped) | 1.1 | 2.1 | 36.1 | 3870 |
| MFX400-1mRMZ1-R-3C120S | 3×120 (sector shaped) | 1.2 | 2.2 | 39.6 | 4770 |
| MFX400-1mRMZ1-R-4C1.5 | 4×1.5 | 0.7 | 1.1 | 12.1 | 250 |
| MFX400-1mRMZ1-R-4C2.5 | 4×2.5 | 0.7 | 1.2 | 12.9 | 300 |
| MFX400-1mRMZ1-R-4C4 | 4×4 | 0.9 | 1.3 | 15.4 | 440 |
| MFX400-1mRMZ1-R-4C6 | 4×6 | 0.9 | 1.3 | 17.0 | 570 |
| MFX400-1mRMZ1-R-4C10 | 4×10 | 0.9 | 1.4 | 19.1 | 810 |
| MFX400-1mRMZ1-R-4C16 | 4×16 | 0.9 | 1.5 | 22.2 | 1160 |
| MFX400-1mRMZ1-R-4C25 | 4×25 | 0.9 | 1.6 | 26.9 | 1720 |
| MFX400-1mRMZ1-R-4C35 | 4×35 | 0.9 | 1.7 | 29.7 | 2220 |
| MFX400-1mRMZ1-R-5C1.5 | 5×1.5 | 0.7 | 1.2 | 12.8 | 280 |
| MFX400-1mRMZ1-R-7C1.5 | 7×1.5 | 0.7 | 1.2 | 14.3 | 370 |
| MFX400-1mRMZ1-R-12C1.5 | 12×1.5 | 0.7 | 1.4 | 17.9 | 570 |
| MFX400-1mRMZ1-R-19C1.5 | 19×1.5 | 0.7 | 1.5 | 20.7 | 790 |
| MFX400-1mRMZ1-R-27C1.5 | 27×1.5 | 0.7 | 1.7 | 24.4 | 1100 |
| MFX400-1mRMZ1-R-37C1.5 | 37×1.5 | 0.7 | 1.9 | 27.3 | 1380 |
| MFX400-1mRMZ1-R-5C2.5 | 5×2.5 | 0.7 | 1.2 | 14.7 | 400 |
| MFX400-1mRMZ1-R-7C2.5 | 7×2.5 | 0.7 | 1.2 | 15.8 | 480 |
| MFX400-1mRMZ1-R-12C2.5 | 12×2.5 | 0.7 | 1.4 | 20.3 | 780 |
| MFX400-1mRMZ1-R-19C2.5 | 19×2.5 | 0.7 | 1.5 | 23.4 | 1070 |
| MFX400-1mRMZ1-R-27C2.5 | 27×2.5 | 0.7 | 1.7 | 27.9 | 1500 |
